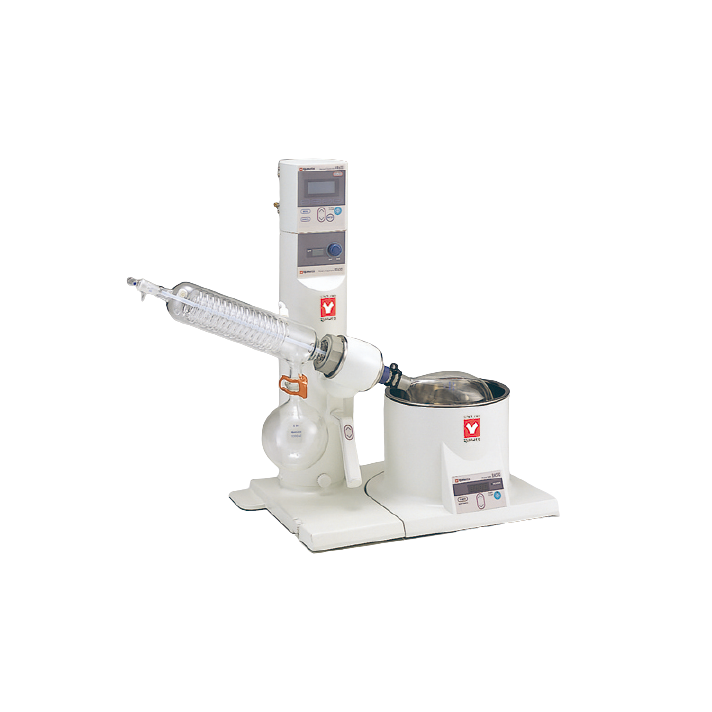

Yamato RE601C-O 旋转蒸发仪 (BM400)

Body RE 601 type+glass set C+water bath BM400 type combination product.

Motor: DC brushless motor (for rotation)

Controller: Vacuum regulator VR600

Lift stroke: 130mm

Setting range of vacuum: 0 to 981hPa

Measurable range of vacuum: 0 to 1033hPa

Resolution of vacuum: 1hPa

Setting range of hysteresis: 1 to 50hPa

Resolution of vapor temperature indicator: Selectable (either 1°C or 0.1°C)

Readout of cooling water temperature: Depending on indicator (option)

Resolution of cooling water temperature indicator: 1℃ or 0.1℃

Operation modes: Free, fixed temperature, fixed temperature timer, descending, and descending timer

Setting range of timer: 1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations

Memory: 10 programs for each operation

Data operation: N/A

Speed (rpm) setting: Rotation: Control knob Vacuum adjustment: Key pad

Safety measures (drive unit): Circuit breaker, rotor for overload protection, manual adjustment of lift's lower limit, lift-up switch during power outage

Safety measures (vacuum regulator): Self-diagnostic functions, main unit/bath synchronized stop at malfunction, error display

Synchronized control feature: Selection of automatic bath stop or automatic insulation

Lifting feature: One-touch motorized lift system

External dimensions(W×D×H mm): 643×400×727mm

Remarks(dimensions): When glass set C is installed. Lift-up time: 857 mm

Power Source: AC100 to 240V 1.5A

Weight: 15kg

Remarks(weight): Excluding glass · water bath/oil bath
