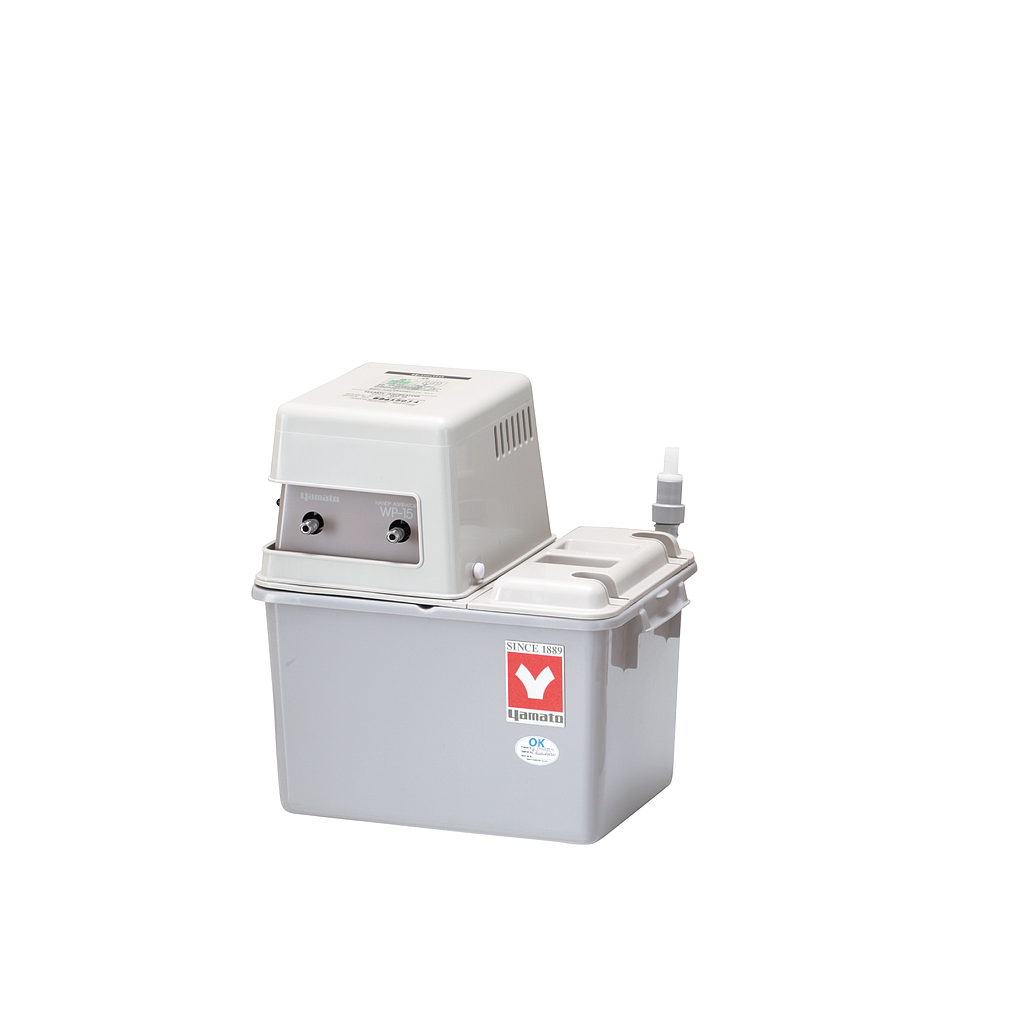

Yamato WP-15 携带式吸引器 (10L)

Ultimate pressure: Depends on stream pressure at operating temperature

Ultimate vacuum: 1.2kPa(9.2Torr)at 10℃

Ultimate vacuum: 2.3kPa(17.5Torr)at 20℃

Ultimate vacuum: 4.2kPa(31.8Torr)at 30℃

Discharge rate: 50Hz 11〜13L/min×2

Discharge rate: 60Hz 12〜14L/min×2

Aspirator: O.D. 12mm (metal) x 2

Water tank: Polypropyrene resin made  10L

Circulation pump: 80W self-suction type Polypropyrene resin made

Vacuum controller (with pressure gauge): can be attached(Option)

Drainage method: Natural drainage by overflow

Suction port size: O.D. 12mm

External dimensions(W×D×H mm): 360×250×360mm

Power Source: AC100V 2/2.3(50/60Hz)A

Weight: 9kg
