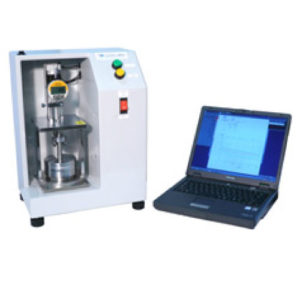

Yasuda 105-AUTO 自动(威廉式)塑度计 (自动)

Specimen: Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm)

Parallel Plate:

+ Upper: φ148 mm, T12 mm

+ Lower: φ148 mm, T13 mm

Test Load: Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N)

Dial Gauge: Scale 1/100 mm, Stroke Max. 20 mm

Software: Windows Compatible

Accessories: Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench,Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO)

Option: Heating Plate Type, Safety Cover

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/Weight (Approx.): W365 × D250 × H500 mm/ 15 kg
