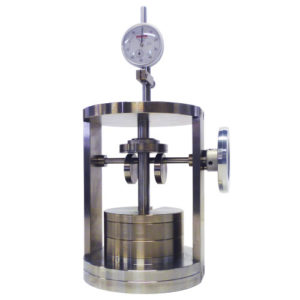

Yasuda 105 (威廉式)塑度计

Specimen: Cylindrical shape, Volume 2 ± 0.02 cm3 (φ16 mm, H10 mm)

Parallel Plate:

+ Upper: φ148 mm, T12 mm

+ Lower: φ148 mm, T13 mm

Test Load: Initial 24.5 N (2.5 kgf) to Max. 49 ± 0.05 N (5 kgf) (Standard 49 ± 0.05 N)

Dial Gauge: Scale 1/100 mm, Stroke Max. 20 mm

Accessories: Dial Gauge, Weight (4.9 N: 1 pc, 9.8 N: 2 pcs), Hexagon wrench,Set Up Disk (105-AUTO), Power Plug Adaptor (105-AUTO)

Dimensions/Weight (Approx.): W175 × D175 × H330 mm, 10 kg

*With Dial Gauge Attached.
