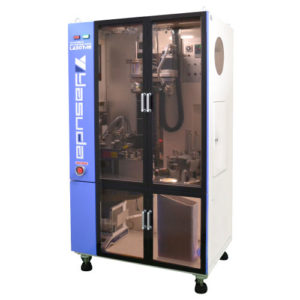

Yasuda 120-LABOT 熔体流动指数试验机 (Fully automatic)

Hangings: 12, 24, 50 Hangings (3 kinds)

Die: φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm

Piston: Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm

Cylinder: Inner φ9.550 ± 0.007 mm, L160 mm

Temperature Range: Max. 300 °C (Option: 400 °C)

Weight Load: 0.325, 1.20, 2.16, 3.80, 5.00, 10.00 kgf and 21.60 kgf

Test Method: Method A: Manual (Option: Automatic)Method B: Automatic

Specimen Feeding: Automatic

Weight Loading: Automatic

Weight Change: Manual (Option: Automatic)

Cylinder Cleaning: Automatic (Solvent cleaning can also be automatic)

Die Cleaning: Automatic

Piston Cleaning: Automatic

Data Processing: Method A: Manual (Option: Automatic)Method B: Automatic

Method B Measuring: Rotary Encoder

Software: Windows Compatible

Accessories: Cleaning Rod (Die & Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun

Option: Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan, Smoke-Detection Sensor

Power Source: AC 100 V, 1-Phase, 15 A, 50/60 HzAC 200 V, 1-Phase, 20 A, 50/60 Hz (ISO-1133-2 Compatable Type)

Air Source: 0.5 MPa or More

Dimensions/ Weight(Approx.): 12,24 Hangings:W950 × D680 × H1,720 mm/350 kg;  50 Hangings:W1,100× D700 × H1,750 mm/ 400 kg
