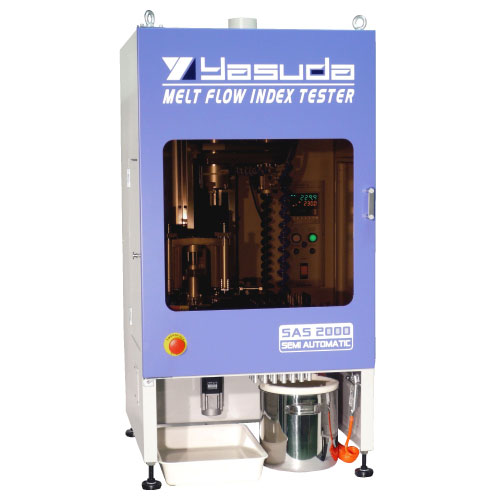

Yasuda 120-SAS 熔体流动指数试验机 (Automatic)

  • 制造商: Yasuda
    Model: 120-SAS
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Hangings: 1 or 3 Hangings (2 kinds)

Die: φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm

Piston: Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm

Cylinder: Inner φ9.550 ± 0.007 mm, L160 mm

Temperature Range: Max. 300 °C (Option: Max. 400 °C)

Weight Load: Choose the Largest Load from 0.325, 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf

Test Method: Method A: Manual (Option: Automatic) Method B: Automatic

Accessories: Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun

Option: Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor: (Standard for No.120-LABOT)

Power Source: AC 100 V, 1-Phase, 15 A, 50/60 HzAC 200 V, 1-Phase, 20 A, 50/60 Hz (ISO-1133-2 Compatable Type)

Air Source: 0.5 MPa or More

Dimensions/ Weight (Approx.): 1 Hanging: W675× D645 × H1,370 mm/200 kg; 3 Hangings: W675 × D725 × H1,370 mm/ 220 kg
