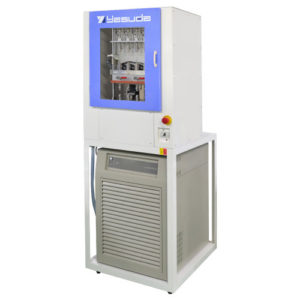

Yasuda 145-G GEHMAN 刚度测试仪

Hangings: 4 Hangings

Specimen: L40.0 ± 2.5 mm, W3.0 ± 0.2 mm, T2.0 ± 0.2 mm

Torsion Wire: L: 65 ± 8 mm; Torsional Constant: 2.81 mN⋅m/rad (Standard Wire), 0.70 m N.m/rad,11,24 m N.m/rad

Chuck Distance: 25 ± 3 mm

Torsion Angle Measurement: Rotary Encoder, Detection: 0.1°

Temperature Range: -70 to 30 °C (Refrigerator & Refrigeration Medium)

Refrigertion Medium Amount: Approx.8 L

Temperature Rise: 5 °C interval (Condition Controlling Time: 5 min)

Software: Windows Compatible

Accessories: Specimen Setting Jig, Specimen Cutter, Torsion Wire Jig: 1 pc each

Power Source: AC 200 V, 3-Phase, 20 A, 50/60 Hz

Dimensions/ Weight (Approx.): W720 × D780 × H1,840 mm, 250 k
