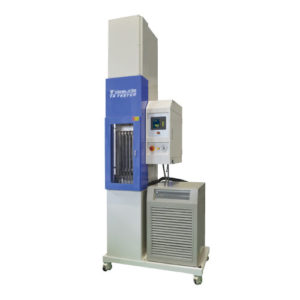

Yasuda 145-L 低温拉伸回弹试验机

Hangings: 4 or 6 Hangings (2 kinds)

Specimen: I-shape, Chuck Area: 6.5 × 6.5 mm

Parallel:  Area: W2.0 ± 0.2 mm L100.0 ± 0.2 mm or 50.0 ± 0.2 mm, 2.0 ± 0.2 mm

Chuck Distance: 50 mm or 100 mm

Displacement Measurement: Optical Scale Sensor, Accuracy of ± 0.1 mm, Scale 0.1 mm, Stroke Max. 200 mm

*The Displacement Measuring Stroke is to be decided through discussion.

Temperature Range: -70 to 30 °C (Refrigerator & Refrigeration Medium) (Option: Combined with Liquid Nitrogen -100 °C)

Heat-Up Speed: 1 °C/min

Software: Windows Compatible

Accessories: Specimen Setting Gauge, Specimen Cutter (100 mm, 50 mm): 1 pc each

Option: Safety Cover

Power Source: AC 200 V, 3-Phase, 30 A, 50/60 Hz

Dimensions/ Weight (Approx.):

4 Hangings: W1,110 × D830 × H1,830 mm/ 320 kg;

6 Hangings: W1,170 × D830 × H1,870 mm/ 370 kg

*Dimension when the Specification of the Stroke is Max.200 mm

*Height when the Rack is Raised:H2,225 mm
