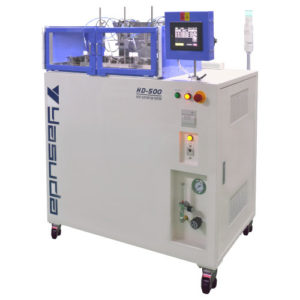

Yasuda 148-HD500 高温热变形测试仪

  • 制造商: Yasuda
    Model: 148-HD500
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Stations: 3 Stations

Temperature Range: Max. 500 °C (Air Chamber, Nitrogen Gas Filling Device Attached)

Heat-Up Speed: 120 ± 10 °C/hr, 50 ± 5 °C/hr

Bending Stress: 1.80 MPa, 0.45 MPa

Weight Load: DTUL: Choose 2 type from Initial 76.5 gf to Max. 3,210 gf; Option: VICAT 10 ± 0.2 N, 50 ± 1 N; Option: Ball Pressure: 0.4 to 2.0 N

Displacement Measurement: Differential Transformer: 0.001 mm, Stroke 0 to ± 2 mm

Pressure Foot: DTUL: R3.0 ± 0.2 mm; Option: VICAT 1.000 ± 0.015 mm2; Option: Ball Pressure φ5 mm

Support Length: 64 ± 1 mm, 100 ± 2 mm (Standard)

Refrigerating Device: Fan type (Air Fan Cooling), 3 Fans, Carbon Gas Injection Cooling System

Churning Device: Propeller type, 3 propellers

Software: Windows Compatible

Accessories: Pressure Foot Adjustment, Specimen Holder

Option: Safety Cover, Simultaneous Loading Device, Borosilicate Glass

Power Source: AC 200 V, 1-Phase, 30 A, 50/60 Hz

Dimensions/ Weight (Approx.): W1,100 × D750 × H1,530 mm/ 250 kg

Details

Datasheet
