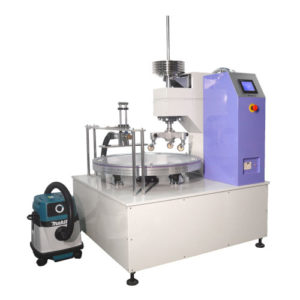

Yasuda 159 地板材疲劳试验机

Specimen: φ700 mm

Turn Table: φ800 ± 5 mm, T8 ± 1 mm (Acrylic Board)

Table Rotation Speed: 19 rpm

Roller Holder: R130 mm, Caster Attachment: 3 pcs

Holder Rotation Speed: 10 to 50 rpm (Standard 50 rpm)

Caster: Free Motion, φ30 to φ70 mm

Weight Load: Initial 10 kgf to Max. 120 kgf (Standard: 90 kgf)

Counter: 6 Digits Preset Counter, 6 Digits Running Counter

Reverse Timer: 1 to 999 sec

Option: Suction Device (25 to 30 L/s)

Power Source: AC 200 V, 3-Phase, 20 A, 50/60 Hz

Dimensions/ Weight (Approx.): W1,270 × D1,250 × H1,750 mm/ 700 kg


Detail

Datasheet
