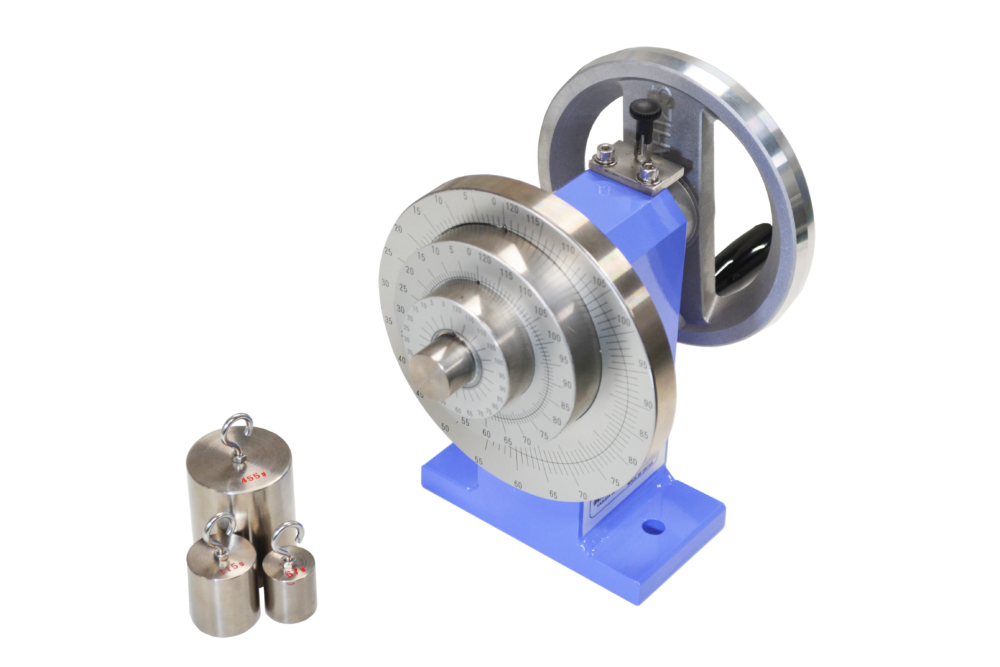

Yasuda 163 漆包线刚度测试仪(spring back method)


Specimen: 1 m, Conductor Diameter φ0.25 to φ1.6 mm

Mandrel Rotation Speed: 5 to 10 rpm (Manual or Motorized)

Mandrel Diameter: φ19 mm、 φ48 mm、 φ82 mm

Weight: 57 g, 115 g, 455 g

Scale: 0 to 120

Counter: 4 Digits Preset Counter (Only for Motorized)

Accessories: Foot Switch (Only for Motorized)

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz (Motorized Model)

Dimensions/ Weight (Approx.): W480 × D285 × H250 mm, 10 kg (Motorized Model
