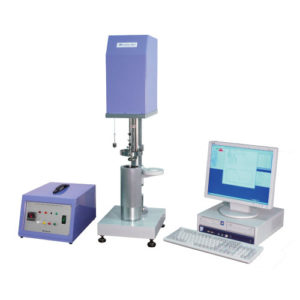

Yasuda 170-AUTO CLASH-BERG式塑料扭转柔韧性试验仪 (Manual)

Specimen: W6.35 ± 0.03 mm, L64 mm, T0.8 to 1.5 mm

Chuck Distance: 40 mm

Angle Scale: 0 to 270° (Scale 1°)

Detection: Rotary Encoder

Temperature Range: -60 to 100 °C (Dry Ice Cooling)

Heat-Up Speed: 2 °C/min

Torque Device: Pulley Type

Weight: 5 g, 10 g, 20 g, 50 g

Software: Windows Compatible

Accessories: Duwar Flask, Thermometer: 2 pcs, Specimen Cutter, Notching Tool, Specimen Setting Gauge

Power Source: AC 100 V, 1-Phase, 10 A, 50/60 Hz

Dimensions/ Weight (Approx.):

Tester Body:

W400 × D450 × H1,050 mm, 40 kg

Control Box:

W350 × D500 × H300 mm, 13 kg
