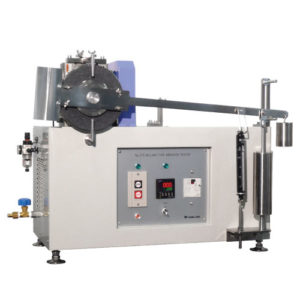

Yasuda 275 橡胶磨耗试验机

Specimen: (20 ± 0.5) × (20 ± 0.5) × T10 mm

Specimen Position: Left-Right 63.5 mm from center of wheel

Weight Load: 35.5 N(3.62 kgf)

Abrasion Wheel: Outer Diameter φ165 mm, Inner Diameter φ70 mm, Material C, Grit #70

Wheel Rotation Speed: 37 ± 3 rpm

Air Nozzle: Vent φ1.0 mm (Pitch 6 mm): Upper & Lower 3 pcs each, Air Pressure 180 kPa

Pressure Gauge: Max. 1 MPa (Scale 0.1 MPa)

Timer: Max. 99 min 59 sec

Accessory: Specimen Cutter

Power Source: AC 100 V, 1-Phase, 10 A, 50/60 Hz

Air Source: 0.5 MPa or More

Dimensions/ Weight (Approx.): W700 × D520 × H560 mm/ 55 kg
