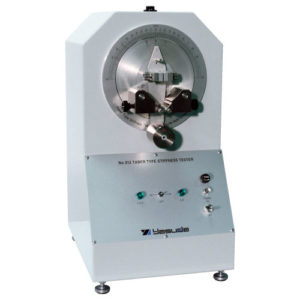

Yasuda 312 数显型(泰伯式)刚度试验机

Moment: Max. 490 mN⋅m (5,000 gf⋅cm)

Load Scale: Left-Right 0 to 100

Weight Load: 100 gf, 200 gf, 500 gf

Load Position: 100 mm from the Pivot

Bending Angle: Left-Right 15° or 7.5°

Bending Speed: 180 ± 40°/min

Specimen: W30 to 40 mm (Standard: 38.0 ± 0.2 mm), L 70 mm, T3.2 mm or Less

Roller:

+ φ8.60 ± 0.05 mm for Test

+ φ8.93 ± 0.05 mm for Positioning

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.): W300 × D350 × H500 mm/ 25 kg
