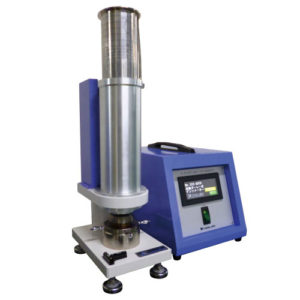

Yasuda 323-AUTO Gurley 透气度试验机 (Automatic)

Specimen: 50 × 50 mm

Clamp: φ28.6 ± 0.1 mm (Permeation Area 642 mm2)

Outer Cylinder: Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom

Inner Cylinder: Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g

Air Volume: 0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml)

Time Measuring:

+ Automatic Max. 99999.9 sec

+ Detection: Micro Optical Senser

Accessory: Machine Oil

Option: Attachment (φ10 mm)

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.):

+ Tester Body: W150 × D230 × H420* mm/ 16 kg

*H580 mm: When Inner Cylinder is set in the test position.

+ Control panel: W250 × D360 × H250 mm/ 8 kg
