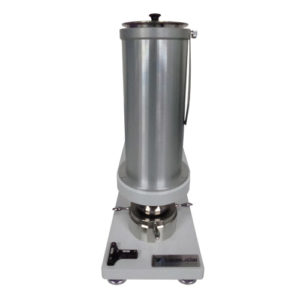

Yasuda 323 Gurley 透气度试验机

Specimen: 50 × 50 mm

Clamp: φ28.6 ± 0.1 mm (Permeation Area 642 mm2)

Outer Cylinder: Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom

Inner Cylinder: Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g

Air Volume: 0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml)

Time Measuring: Manual (Stopwatch)

Accessory: Machine Oil

Option: Attachment (φ10 mm)

Dimensions/ Weight (Approx.): W150 × D230 × H420* mm/ 13 kg

*H580 mm: When Inner Cylinder is set in the test position.
