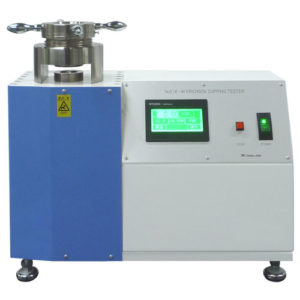

Yasuda 516-M （埃里克森）漆膜耐性试验机 (电子系统)
制造商: Yasuda Model: 516-M 来源: Japan 保障: 12 Month - 报价要求
- 报价要求
- 联系
Test Plate: Steel Plate, T0.3 to 1.25 mm W&L Min. 70 mm to Max. 90 mm
Die:
+ Outer Diameter φ55 ± 0.1 mm
+ Inner Diameter φ27 ± 0.05 mm
+ Edge R0.75 ± 0.05 mm
Holder Ring:
+ Outer Diameter φ55 ± 0.1 mm
+ Inner Diameter φ33 ± 0.1 mm
+ 0.05 mm Scale Attached
Punch: Hemispherical shape, φ20 ± 0.05 mm
Push Measuring: Rotary Encoder: Scale 0.01 mm, Stroke Max. 20 mm, Touch Panel Display
Push Speed: Motorized 0.2 ± 0.1 mm/s
Option: Mirror, Magnifier, Lighting Device
Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz
Dimensions/ Weight (Approx.): W450 × D200 × H430 mm/ 53 kg
