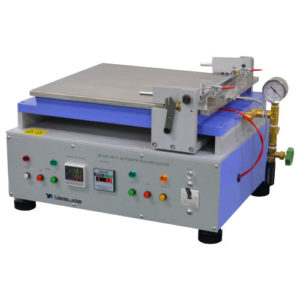

Yasuda 542-AB-H 自动制膜机 (Heating Plate Type)

  • 制造商: Yasuda
    Model: 542-AB-H
    来源: Japan
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Surface Plate:

+ A4 size: W298 × L392 mm (Effective Range, Material SUS-303)

+ A3 size: W398 × L496 mm (Effective Range, Material SUS-303)

Suction Area:

+ A4 size: W200 × L285 mm, φ1 mm: 110 pcs

+ A3 size: W300 × L420 mm, φ1 mm: 210 pcs

Temperature Range: Max. 120 °C

*Only a single temperature can be selected.

Coating Speed: 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz), Length Setting Sensor Attached

Accessories: Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula

Option: Vacuum Pump, Barcoater, Applicator

Power Source: AC 100 V, 1-Phase, 10 to 15 A, 50/60 Hz

Dimensions/ Weight (Approx.) :

+ A4 size: W500 × D410 × H410 mm/ 50 kg

+ A3 size: W620 × D510 × H410 mm/ 65 kg

Details

Datasheet
