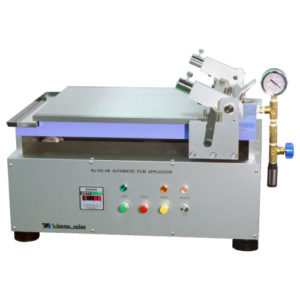

Yasuda 542-AB 自动制膜机

Surface Plate:

+ A4 size: W298 × L392 mm (Effective Range, Material SUS-303)

+ A3 size: W398 × L496 mm (Effective Range, Material SUS-303)

Suction Area:

+ A4 size: W200 × L285 mm, φ1 mm: 110 pcs

+ A3 size: W300 × L420 mm, φ1 mm: 210 pcs

Coating Speed: 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz),

Length Setting Sensor Attached

Accessories: Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula

Option: Vacuum Pump, Barcoater, Applicator

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.) :

+ A4 size:W500 × D410 × H400 mm/ 45 kg

+ A3 size:W620 × D510 × H400 mm/ 60 kg
