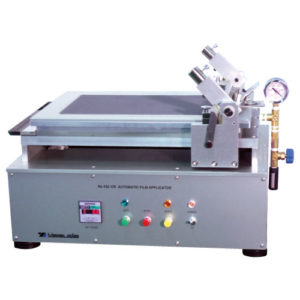

Yasuda 542-CR Automatic Film Applicator (Ceramic Plate Type)

  • 制造商: Yasuda
    Model: 542-CR
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Surface Plate:

+ A4 size: W270 × L360 mm (Effective Range, Material: Porous Ceramics)

+ A3 size: W355 × L516 mm (Material: Porous Ceramics)

Coating Area:

+ A4 size: W200 × L300 mm

+ A3 size: W300 × L450 mm

 Length Setting Sensor Attached (can make 300 to 450 mm)

Coating Speed: 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz)

Safety Device (chọn mua thêm): Slip type Torque Limiter (70 N)

Accessories: Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula

Option: Vacuum Pump, Barcoater, Applicator

Power Source: AC 100 V, 1-Phase, 10 to 15 A, 50/60 Hz

Dimensions/ Weight (Approx.) :

+ A4 size: W570 × D490 × H430 mm/ 50 kg

+ A3 size: W720 × D590 × H430 mm/ 65 kg

Details

Datasheet
