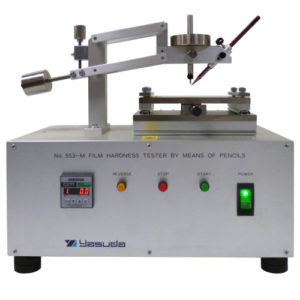

Yasuda 553-M 电动铅笔划痕硬度试验机 (电子系统)

Specimen Base: M-1: 100 × 180 mm; M-2: 150 × 180 mm

Stroke: Left-Right Max. 100 mm, Front-Back Max. 50 mm

Scratching Angle: 45° (60° for Enameled Wire)

Scratching Speed: Motorized (Standard 0.5 to 1 mm/s)

Weight Load: Max. 1 kgf (Balance Weight)

Accessories: Mitsubishi UNI Pencil (6B to 9H): Total 10 pcs, Abrasive Paper (#400), Spirit Level

Option: Heating Plate Spec, Conduction Device, Needle (φ3 mm, L23 mm, Top Angle 60°)

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/Weight (Approx.): W500 × D170 × H370 mm/ 8 kg

Details

Datasheet
