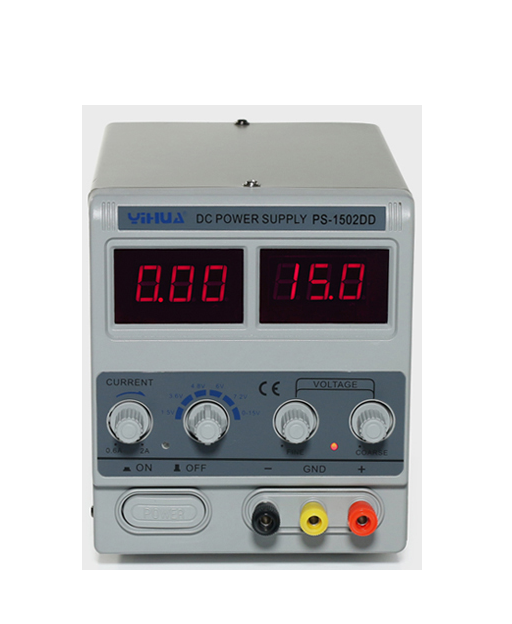

YIHUA YH-1502DD 通讯维修专用电源 (15V 2A)

Rated voltage: AC220V±10%  50Hz

Power of complete machine: 15W

Operating environment: 0~40℃  relative humidity<80%

Storage temperature: -20~80℃  relative humidity<80%

Dimensions of the machine body: 17*21*16.5cm

Weight: 1.06KG

Performance parameters

Output voltage: Adjustable continuously within 0~15V

Output current: Adjustable continuously within 0~1A

(current limitation adjustment when above 0.2A)

Output power: 15W

Source effect: ≤1mV

Load effect: ≤0.33%

Ripple noise: ≤3mVrms(5Hz ~ 1MHz)/≤3mArms

Display accuracy: 0.1V/0.1A/1mA

Protection mode: Over-current, short circuit, over-temperature protection
