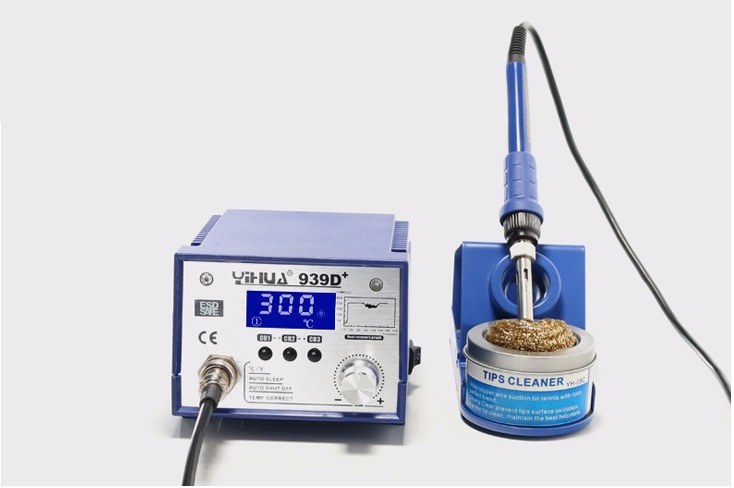

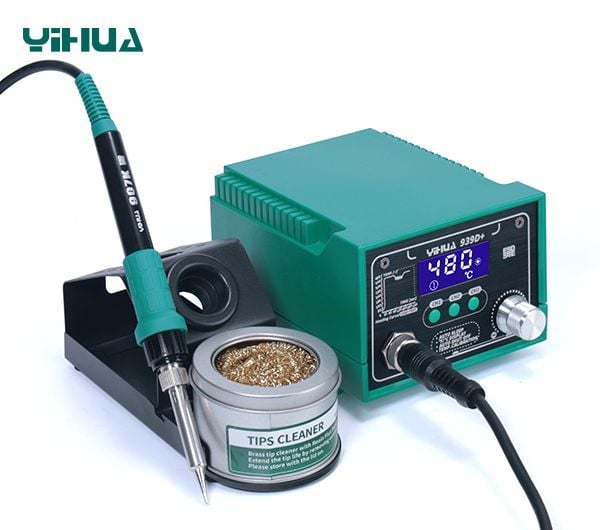

YIHUA YH-939D+ 功率电烙铁无铅温控烙铁 (75W)

Rated voltage: AC 220V±10%  50Hz

Output power: 75W

Constant Temperature Power (High-Speed PID Programmed to Energy Savings): 200W±10%

Withstand voltage and insulation tests: AC1500V 0.4A 60S

Operating Environment: 0~40℃  relative humidity<80%

Storage environment: -20~80℃  relative humidity<80%

Body size: 14.5*12*8CM

Weight: 2.17KG

Work voltage: AC 26V±10%  50Hz

Temperature range: 200℃~480℃

Temperature Stability: ±1℃(Static)

Display Mode: LED Digital Display

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: 100MS

Heating Core: Imported High-Powered Heating Core

Tip-to-Ground Impedance: <2Ω

Tip-to-Ground Voltage: <2mV
