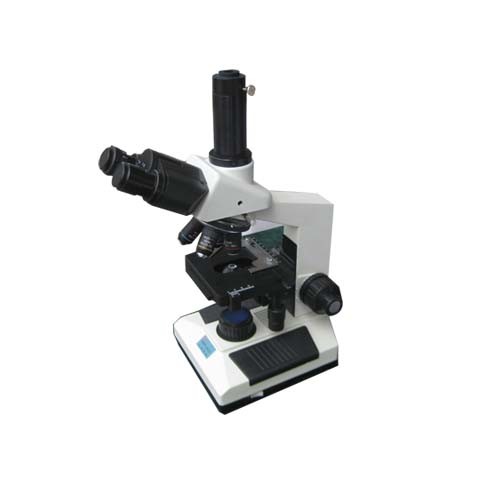

Yoke XSP-10CA 三目生物显微镜

-Techniques parameters:

1. Flat-field eyepiece: 6.3X, 10X, 16X;

2. Achromatic objective: 4X, 10X, 40X (shells), 100X

3. The total magnification: 25X-1600X;

4. Mechanical tube length: 160mm;

5. Binocular pupil distance: 54mm-76mm;

6. Double deck mechanical stage: Size: 135mm × 135mm; Moving range: X direction: 70mm; Y direction: 50mm;

7. NA1.25 condenser with iris diaphragm and filter;

8. Camera and CCD interface is optional.

-Technical parameters contrast:

TUBE: Trinocular

THE CONDENSER AND LIGHTBAR: Abbe condenser variable iris diaphragm and filter

EYEPIECE: Wide-angle eyepiece WF10X,Huygens eyepiece H16X

ACHROMATIC OBJECTIVE: 4X,10X, 40X(S),100X(S)

LIGHTING: Halogen lamp 6V/20W

POWER SOURCE: Electric light source
