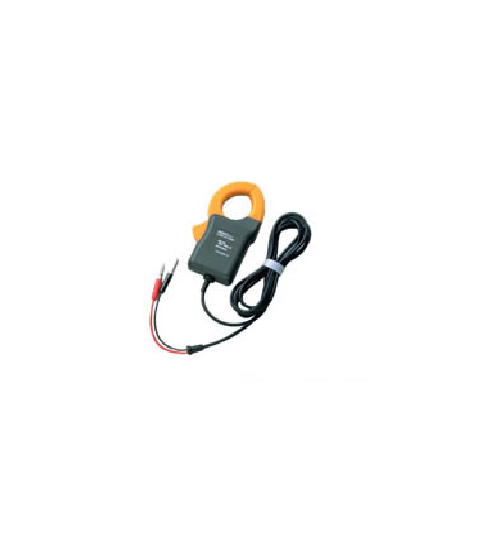

Yokogawa 96001 钳式电流探头

Measuring Range: 0 to 400 A ACrms (600 A peak)

Output Voltage: 0 to 4 V ACrms (10mV/A)

Accuracy(at 23 deg.C ±5 deg.C,sine wave input): Amplitude: ±1.5% of rdg ±0.4mV (20Hz to 40Hz), ±1.0% of rdg ±0.2mV (40Hz to 1kHz), ±(0.8 + 0.2 x f kHz)% of rdg ±(0.2 + 0.04 x f kHz)mV (1 to 20kHz); Phase: Within ±3.0 deg.C (40Hz to 1kHz)

Temperature Coefficient 0.05% fs/deg.C in a range of 0 deg.C to 18 deg.C and 28 deg.C to 50 deg.C

Output Impedance: Approximately 30Ω

Load Impedance: 100kΩ min.//100 pF max.

Safety: Conforms to IEC 1010.

External Dimensions: Approximately 70(W) x 130(H) x 30(D)mm

Weight: Approximately 220g

Output cord length: Approximately 2.5 meters(with banana plug)

Accessories: One portable case and one instruction manual
