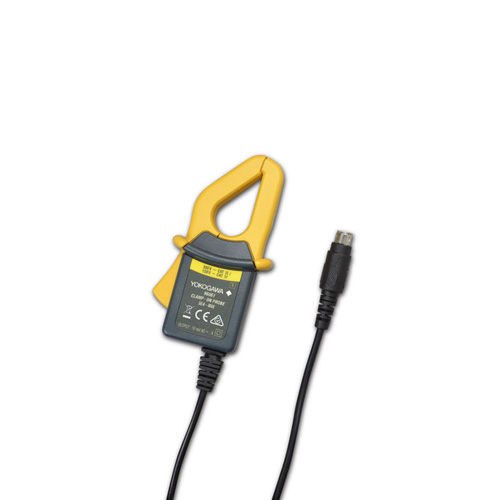

Yokogawa 96061 探头(50A)

Measurable conductor size: Max. φ18 mm

Measuring range: AC 0 to 50 Arms,

Output voltage: AC 0 to 500 mVrms (10 mV/A)

Accuracy (sine wave input): Phase: Within ±2.0 deg (at 0.5 A to 50 A, 40 Hz to 3.5 kHz)

Temperature & humidity range (guaranteed accuracy): 23 ±5°C, 85%RH or less(no ondensation)

Rated voltage between circuit and ground: AC 300 Vrms Max.

 Operating temperature & humidity range: 0 to 50°C, 85%RH or less (no ondensation)

Storage temperature & humidity range: -20 to 60°C, 90%RH or less (no ondensation)

Temperature coefficient: 0.05% f.s./°C (0 to 50°C)

Maximum allowable input: AC 130 Arms continuous (50/60Hz)

Influence of the conductor location: Within ±0.5% rdg (1 to 50 A, 45 Hz to 1 kHz)

Influence of the external magnetic field:  0.1 A equivalence or less (400 A/m, 50/60Hz)

Output impedance: Approx. 18 Ω

Withstand voltage: AC 3.7 kVrms / 1 minute Between jaw and case, case and output terminal, output terminal and jaw.

Recommended calibration period: 1 year

Environmental condition: Altitude up to 2000 m, in-door use

Dimension: 52(W)×106(H)×25(D) mm (excluding projections)

Cable length: Approx.3m

Output terminal: MINI DIN 6PIN

Weight: Approx.170g

Accessory: Instruction manual, Output cable (M-7199)
