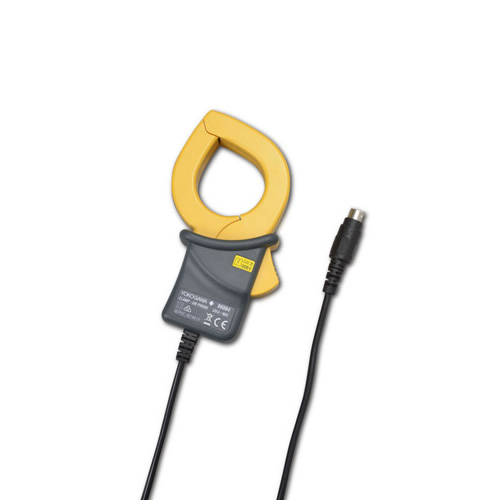

Yokogawa 96062 钳式电流探头(100A)

Measurable conductor size: Max. φ24 mm

Measuring range: AC 0 to 100 Arms (141 A peak)

Output voltage: AC 0 to 500 mVrms (5 mV/A)

Accuracy (sine wave input): + Band width: ±0.5%rdg±0.1 mV( 50/60 Hz), ±1.0%rdg±0.2 mV (40 Hz to 1 kHz)

+ Phase: Within ±2.0 deg (at 1 A to 100 A, 45 Hz to 65 Hz)

Temperature & humidity range (guaranteed accuracy): 23 ±5°C, 85%RH or less(no ondensation)

Rated voltage between circuit and ground: AC 300 Vrms Max.

Operating temperature & humidity range: 0 to 50°C, 85%RH or less (no condensation)

Storage temperature & humidity range: -20 to 60°C, 90%RH or less (no condensation)

Temperature coefficient: In the range of 0 to 50°C and the amount of change from 23°C is ±0.5% rdg ± 0.1 mV or less

Maximum allowable input: AC 100 Arms continuous (50/60Hz)

Influence of the conductor location: Within ±0.5% rdg

Influence of the external magnetic field:  0.2 A equivalence or less (400 A/m, 50/60Hz)

Output impedance: Approx. 11 Ω

Withstand voltage: AC 3.51 kVrms / 5 s Between jaw and case, case and output terminal, output terminal and jaw.

Environmental condition: Altitude up to 2000 m, in-door use

Recommended calibration period: 1 year

Dimension: 60(W)×100(H)×26(D) mm (excluding projections)

Cable length: Approx.3m

Output terminal: MINI DIN 6PIN

Weight: Approx.160g

Accessory: Instruction manual, cable marker
