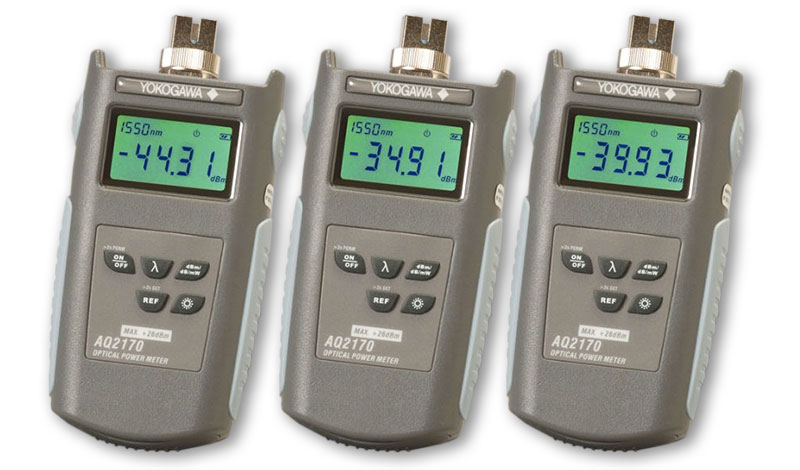

Yokogawa AQ2170H 手持光功率计

Wavelength setting: 1310/1490/1550/1625/1650 nm

Detector: InGaAs

Applicable optical fiber: SM (ITU-T G.652)

Optical connector: FC, SC, LC, ferrule 2.5 mm dia., ferrule 1.25 mm dia.

Power range: −50 to +26 dBm

Noise level: −40 dBm

Uncertainty: ±5%

Display resolution: 0.01 dB (> −40 dBm), 0.1 dB (≤ −40 dBm)

Đơn vị hiển thị: Absolute value: dBm, mW, μW; Relative value: dB

Modulation mode: CW, CHOP (270 Hz, 1 kHz, 2 kHz)

Measurement interval: Approx. 150 ms

Measurement mode: Absolute measurement, relative measurement

Power supply: AAA dry or rechargeable battery. Battery life time: Approx. 40 hours, Power save: Power off automatically in 10 minutes when idle, Battery check: Battery indicator.

Operating temperature: −10 to +50°C, operating humidity: 20 to 80% (no condensation)

Storage temperature: −20 to +70°C, storage humidity: 5 to 95% (no condensation)

Dimensions: 63 (W) mm × 116 (H) mm × 35 (D) mm

Weight: approx. 160 g

Accessories: Connector adapters, four AAA dry batteries, carrying case, protector, strap operation guide, user’s manual (CD)



Instruction Manual
