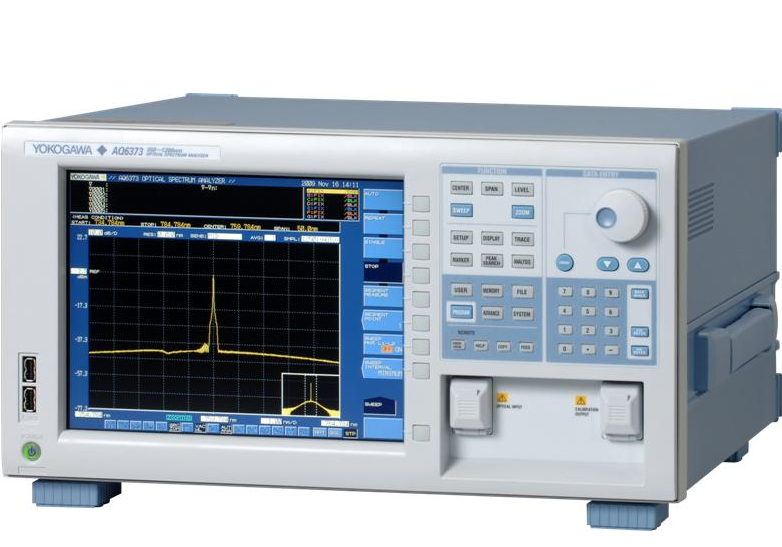

YOKOGAWA AQ6373B 短波长光谱分析仪 (350-1200 nm)

Band: VIS

Wavelength range(nm): Min. 350; Max. 1200

Wavelength accuracy (nm): ±0.2 (Full range); ±0.05 (633 nm)

Wavelength linearity (nm): No

Wavelength resolution setting (nm): Min. 0.01; Max. 10

Maximum number of sampling: 50001

Measurement level range (dBm): Max. +10 (400 to 550 nm) or +20 (550 to 1100 nm); Min.−60 (400 to 500 nm) or −80 (500 to 1000 nm) or −60 (1000 to 1100 nm)

Level accuracy (dB): ±1.0

Level linearity (dB): ±0.2

Level flatness (dB): No

Polarization dependence (dB): No

Dynamic range (dB): 60 (±0.5 nm, RES: 0.02 nm)

Applicable fiber: SMF, G, large core

Purge feature: No

Built-in cut filter for high order diffracted light: Yes

Light source for optical alignment: Yes

Light source for wavelength calibration:  No


Detail

Brochure


Instruction Manual
