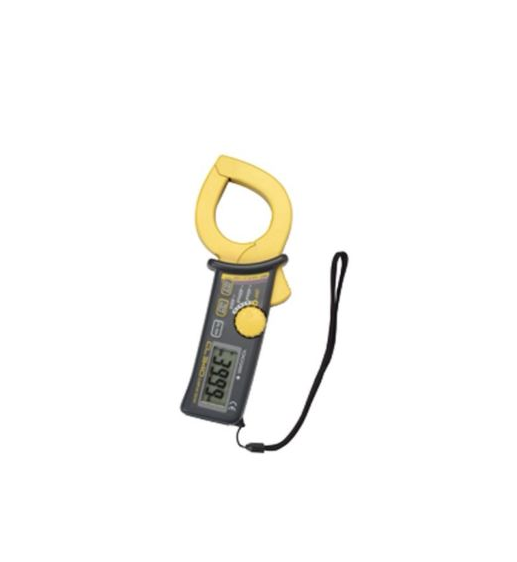

YOKOGAWA CL345 Clamp meter (AC 400A; True RMS)

AC current: 40mA/400mA, 400A(0~300A), 400A(300~400A); 1.0+5 (50/60Hz) at 40mA/400mA, 400A(0~300A)

Method of detection: True RMS

Display: LCD(Digital display:4200 counts)*

Response time: Approx. 2 seconds

Range switching: Manual-range

Data hold: On all range

Peak hold: On all range

Operating temperature and humidity : 0-40C 85% RH or less (no condensation)

Effect of external magnetic field: 10mA or less in proximity to a 15mm-dia conductor carrying 100A

Effect of conductor position: 40/400mA range:Within 5dgt at every part inside the jaw400A range, 0 to 250A:Within ± 0.5%rdg ± 5dgt at every part inside the jaw section

Effect of residual current: 12mA or less in proximity to a 10mm-dia conductor carrying 100A

Safety standard: Conforms EN61010-1, EN61010-2-032

Circuit voltage: 300Vrms or less

Withstanding voltage: 4240V AC for 5 sec

Power supply: R0-3(UM-4) 2 or LR03 2

Batttery life: Approx. 24 hours (continuous)

Consumed current: Approx. 21mA

Auto power-off: Approx. 10 minutes

Diameter of measurable conductor: 40mm  at  maximum

Dimensions: Approx. 81(W)185(H)32(D)mm

Weight:  Approx. 270g

Accessories: User's manual, batteries, carrying case(93030)
