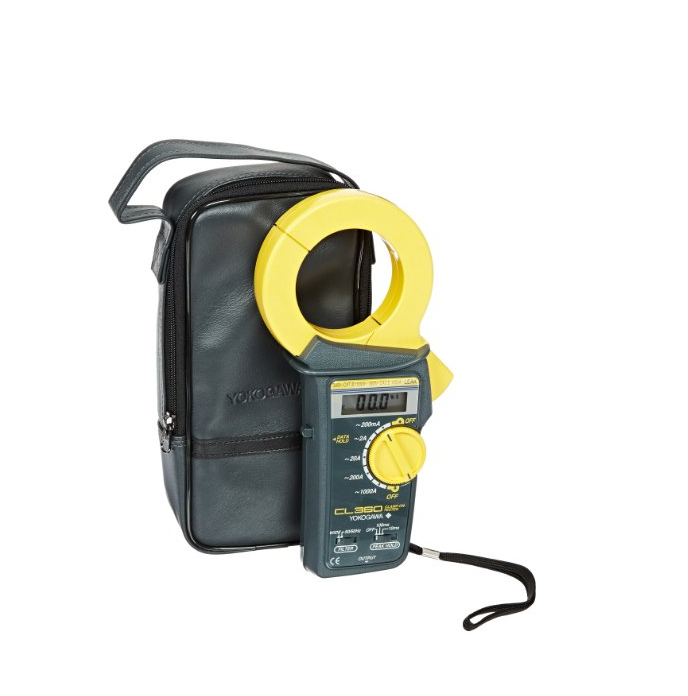

YOKOGAWA CL360 Clamp meter (AC/DC 1000A)

AC current: 200mA/2A/20A, 200A, 1000A(0~500A), 1000A(501~1000A); 1.0+2 (50/60Hz) at 200mA/2A/20A WIDE(40~1kHz)

AC output: 200mA/2A/20A(0~200mV), 200A(0~200mV), 1000A/(0~50mV/0~500A), 1000A/(50~100mV/501~1000A); 2.0 at 200mA/2A/20A(0~200mV) WIDE(40~1kHz)

DC output: 200mA/2A/20A(0~200mV), 200A(0~200mV), 1000A/(0~50mV/0~500A), 1000A/(50~100mV/501~1000A); 3.0 at 200mA/2A/20A(0~200mV) WIDE(40~1kHz)

Method of detection Mean value

Display: LCD(Digital display:1999 counts)

Response time: Approx. 1 second

Range switching: Range selection Auto or Manual

Data hold: On all range

Peak hold: On all range

Operating temperature and humidity : -10-50oC 80% RH or less (no condensation)

Effect of external magnetic field: 15mA or less in proximity to a 10mm-dia conductor carrying 100A

Effect of conductor position: 2% or less

Effect of residual current: 10mA or less in proximity to a 10mm-dia conductor carrying 100A

Safety standard: Conforms EN61010-1, EN61010-2-032

Circuit voltage: 600Vrms or less

Withstanding voltage: 4240V AC for 5 sec

Power supply: 6F22(006P)9Vx1 or 6LR61x1

Batttery life: Approx. 60 hours (continuous)

Consumed current: Approx. 5mA

Diameter of measurable conductor: 68mm at maximum

Dimensions: Approx. 129(W)x248(H)x55(D)mm

Weight:  Approx 570 g (including the battery)

Accessories: User's manual, batteries, carrying case(93031)
