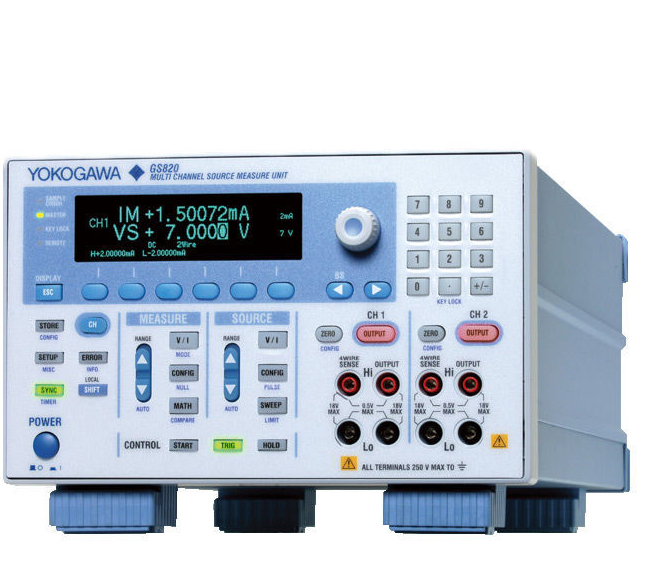

Yokogawa GS820 多通道信号源测量单元

Display: 256 × 64 dot VFD

Rated supply voltage: 100 to 120 VAC or 200 to 240 VAC

Rated supply frequency: 50/60 Hz

Power consumption:  Approx. 250 VA

Warm-up time: At least 60 minutes

Operating temperature and humidity range: 5°C to 40°C and 20% to 80%RH (no condensation)

Storage temperature and humidity range: –15°C to 60°C and 20% to 80%RH (no condensation)

Max. common-mode voltage:

Between the case and each terminal ±250 Vpk

Maximum allowable input voltage:

Between high sense and low sense ±18 Vpk (765601/02)

Between high sense and low sense ±50 Vpk (765611/12)

Between high output and low output ±18 Vpk (765601/02)

Between high output and low output ±50 Vpk (765611/12)

Between high sense and high output ±0.5 Vpk

Between low sense and low output ±0.5 Vpk

Between each terminal of CH1 and each terminal of CH2 ±250 Vpk

Dimensions: Approx. 213 (W) × 132 (H) × 450 (D) mm (excluding projections)

Weight Approx. 8 kg
