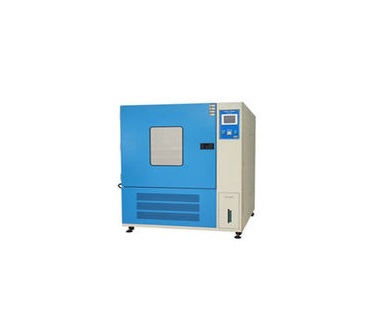

YuYang YY1008-1000A/B/C/D 不锈钢温度测试箱 (带触摸屏控制器) (1000L; +5℃ ~ +35℃; <85%R.H)

Interior Dimension W × H × D: 1000 × 1000 × 1000mm / 39.4” × 39.4” × 39.4”

Exterior Dimension W × H × D: 1530 × 1810 × 1510mm / 60.2” × 71.3” × 59.4”

Interior Volume: 1000L

Control Mode: Balanced Temperature and Humidity Control System

Temp. & Humid. Range: +5℃ ~ +35℃; <85%R.H.

Temp. range: A=0℃, B=-20℃, C=-40℃, D=-70℃ ~ +100℃(150℃)

Humid. range: 10% ~98%R.H. (Optional: 5%~98%R.H.)

Temp. & Humid. fluctuation: ±0.5℃; ±2.5%R.H.

Temp. & Humid. uniformity: ≤2.0℃; ≤3%R.H.

Temp. & Humid. Deviation: ≤1.0℃; ≤2%R.H.

Temp. Heating Time: 0℃ ~ +100℃within 30min; -20℃ ~ +150℃within 45min

Temp. Cooling Time: 20℃ ~ -40℃within 60min; 20℃ ~ -70℃within 85min

Power Supply: AC380V, 50/60HZ, Three-phase (Specified by User)

Exterior Material: stainless steel with baking paint

Interior material: SUS304# Stainless steel

Insulation material: Rigid Polyurethane foam

Refrigeration system: Mechanical cascade refrigeration system; Fin type radiator

Circulation system: Mechanical convection system

Humid Water Supply: Automatic water regulating, recoverable supply system, water shortage alarm system

Water quality: Distilled water only, 20L Water tank capacity

Controller: HL-1000 Touch Screen Controller

Safety devices: Overheat protector Switch, Compressor overload protector Switch water shortage protector Switch, Humidifier protector Switch; Fault alarm system

Accessories:

Viewing window, Chamber Illumination, Cable port ø50mm, Product shelf slides 2 pieces, universal casters HL-1000 touch screen controller

Optional Accessories:

+ Cable Port

+ Water purifier RO 80

+ Dehumidifier

+ Defrosting Device

+ Electronic humidity sensor
