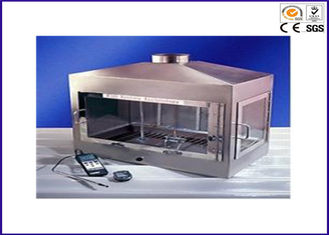

裕阳YY101建材阻燃检测设备

This apparatus made up of two parts: burning chamber and control device.

Power supply: AC220V±10%,50Hz；

Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet;

Gas source: >95% propane gas;(user should provide for themselves)

Gas pressure: 10kpa~50kpa

Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open,

Time adjustment of continuous flame: 0 ~ 99minutes99seconds

Time adjustment of afterflame: 0 ~ 99minutes99seconds

Timer accuracy: ≤1s/h

Anemometer accuracy: ±0.1m/s.

Burner angle: 45°

Material: stainless steel

Observing window: two big viewing windows on the front and right side
