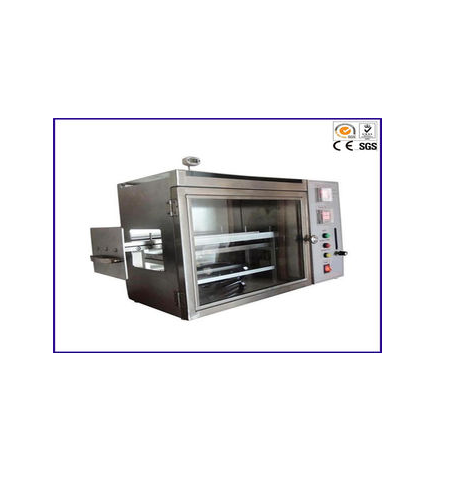

宇阳YY105塑料可燃性测试仪(卧式)

  • 制造商: YuYang
    Model: YY105
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

1. Burner: Φ9.5mm ± 0.3mm bunsen burner

2. Dip angle:00, 200, 450 (manual adjustment)

3. Flame height: 20mm ± 2mm to 180mm±10mm (adjustable)

4. Flame time: 0-999.9s±0.1s (adjustable)

5. After flame time: 0-999.9s±0.1s (auto record, manual pause)

6. After glow time: 0-999.9s±0.1s (auto record, manual pause)

7. Fuel gas: 98% methane

8. Flow and pressure record: flowmeter and manometer

9. Test temperature range: 0-10000C

10. Flame temperature required: heat up from 1000C±50C to 7000C±30C within the time of 44s±2s and 54s±2s

11. Thermocouple: diameter of 0.5mm K type thermocouple (2 pieces)

12. Test background: black

13. Volume of chamber: 0.75 CBM

14. Dimension of apparatus: 1100mm(W)*700mm(D)*1300mm (H)

15. Power supply: AC220V, 50Hz, ≤500W
