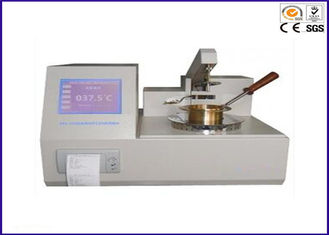

豫阳YY120自动防火测试设备（开杯式）

1. Power supply AC(220±10%)V, 50Hz.

2. Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃

3. Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92

4. Temperature display: LCD screen shows temperature parameters. The range is 0℃~400℃, accuracy is 0.1℃

5. Flash point detecting device: scanning the flash point automatically

6. Temperature sensor RTD, PT100

7. Igniting device: Ignition source: coal gas (or civil gas,the same below) Flame diameter is 3.2mm~4.8mm

8. Ambient temperature: (-10∼50)℃

9. Relative humidity: ≤85%

10. Maximum power consumption: 650W

11. Dimension: 340mm*320mm*450mm (Temperature sensor is included)
