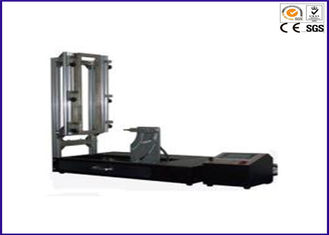

裕阳YY124织物阻燃测试仪(燃烧角0°/ 22.5°/ 90°)

Test sample: 560mmx170mm

Flame level: 0~60mm adjustable

Burner angle: included angle with level line:0°/22.5°/90°adjustable

Firing time: 5 s

Burning gas: butagas

Size(WxDxH): 93x65x88cm

Weight:≈30Kg

Power:1∮ AC 220V 50Hz

Accessories:

sample holders, Flame gauge 40mm 1pcs, 25mm 1pcs (ISO 6940,6941), Burner position pointer 2pcs (ISO 6940,6941),

clamps 2 set, weights 8 pcs, Micro gas tank control device, Micro gas cylinders, power line 1pcs;

Power converter(change power 110V 60Hz to 220V 50 Hz)

Gross weight after plywood box package: 50kg, Total size: 115*80*105cm
