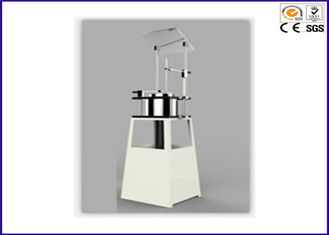

裕阳YY130防火测试设备

1, Intelligent test system with Patent design;

2, Stainless steel burner, beautiful and easy to clean;

3, The heating furnace size: Φ95 mm × Φ75 mm × 150 mm;

4, 3 mm × 0.2 m Ni 80% Cr 20% resistance band;

5, Air cover: Φ75 mm × 500 mm;

6, Thermocouple: insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm ;

7, Equipment with the power controller;

8, The temperature balanced time at 750℃ is about 35min~40min;

9, Thermometers range: 0 ~ 1000℃ 5%;

10, Equipped with mirror to see the interal of the furnace.

Size: 500mm x 500mm x 1500mm

Power: 220V, 50Hz, 1500W

Weight: 50kg50kg
