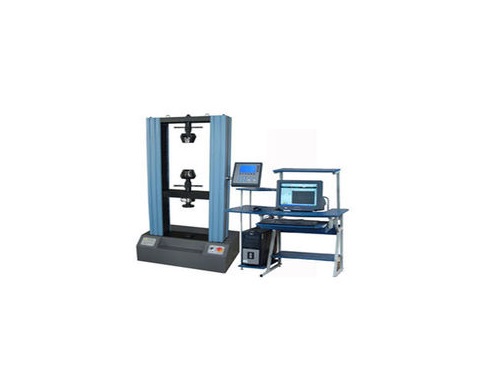

YuYang YY1301 Computer Servo Control Universal Tensile Testing Machine Lab Test Equipment (20000kg)

Capacity (Kg): 50,100,200,500,1000,2000,5000,10000,20000

Load Accuracy: 0.5%

Load Resolution: 1/100,000

Valid Width (mm): 400

Max. Route (mm): 1000(not including clamp)

Test Speed (mm/Min.): 0.1~500(1000)

Speed Accuracy: ±0.5%

Motor: AC servo motor

Volume WxHxD (mm): 1750x3310x1220

Weight (Kg): 300

Power: AC220V, 1ph 3 lines; AC380V, 3ph 5 lines

Detail

Datasheet
