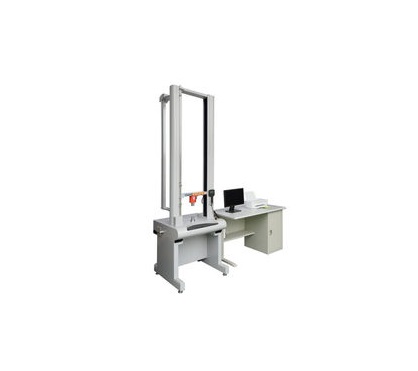

YuYang YY1303 自动通用测试机 (有效宽度410 Mm) (5 kN)
制造商: YuYang Model: YY1303 来源: China 保障: 12 Month - 报价要求
- 联系
Capacity (optional): 100, 200, 500 N; 1,2,5 kN
Unit (Switchable): kgf, lbf, N, kN, kPa, MPa
Load Resolution: 1/200,000 (or 1/300,000 specified by user)
Load Accuracy: ±0.25%
Load Range: Rangeless (full scales at the same amplification)
Stroke (exclude the grips): 1100 mm
Effective width: 410 mm
Test Speed: 0.001~1000 mm/min selectable
Speed Accuracy: ±0.5%
Stroke Resolution: 0.00004 mm
Sample Rate: 200 times/sec
Communication Interface: USB
Motor: AC servo motor
Dimension (WxDxH):
Main Unit (Height exclusive of footpad): 75 × 84 × 233 cm
Computer / Desk: 109 × 65 × 116 cm
Weight (approx.):
Main Unit: 216 kg
Computer / Desk: 50 kg
Power: 1∮, 220V, 15A, 50Hz/60Hz or specified by user
