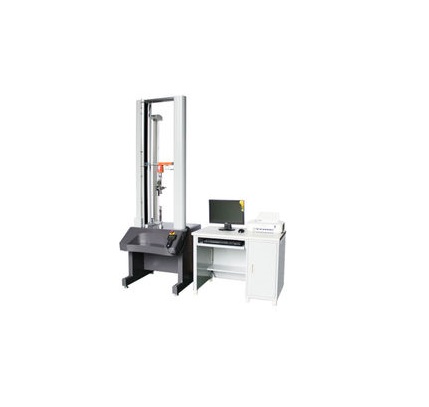

YuYang YY1305 0.001〜1000 Mm / Min万能拉力试验机 (5 kN)

Capacity (optional): 100, 200, 500 N; 1,2,5 kN

Unit (Switchable): kgf, lbf, N, kN, kPa, MPa

Load Resolution: 1/200,000 (or 1/300,000 specified by user)

Load Accuracy: ±0.25%

Load Range: Rangeless (full scales at the same amplification)

Stroke (exclude the grips): 1100 mm

Effective width: 410 mm

Test Speed: 0.001~1000 mm/min selectable

Speed Accuracy: ±0.5%

Stroke Resolution: 0.00004 mm

Sample Rate: 200 times/sec

Communication Interface: USB

Motor: AC servo motor

Dimension (WxDxH):

 Main Unit (Height exclusive of footpad): 75 × 84 × 233 cm

 Computer / Desk: 109 × 65 × 116 cm

Weight (approx.):

 Main Unit: 216 kg

 Computer / Desk: 50 kg

Power: 1∮, 220V, 15A, 50Hz/60Hz or specified by user
