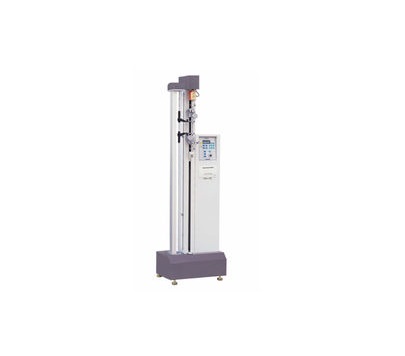

YuYang YY1310 微型计算机拉伸强度测试仪 （速度5〜500 mm / min） (5 kN)

Capacity (optional): 100, 200, 500 N; 1, 2, 5 kN

Unit (Switchable): kgf, gf, Ton, lbf, N, kN or by user`s definition

Load Resolution: 1/50,000 (U25)

Load Accuracy: ±0.5%

Stroke (exclude the grips): 1000 mm

Method of Speed Input: knob

Test Speed: 5~500 mm/min

Stroke Resolution: stroke:0.00125 mm / extensometer:0.025 mm

Sample Rate: 16 times/sec

Indicator: print able, display elongation vatue, test values, max. value & break values.

Motor: AC servo motor

Dimension (W×D×H): 55 × 35× 177 cm

Weight (approx.): 115 kg (excluding control cabinet and grips)

Power: 1∮, 220V, 5A or specified by user 50HZ/60HZ
