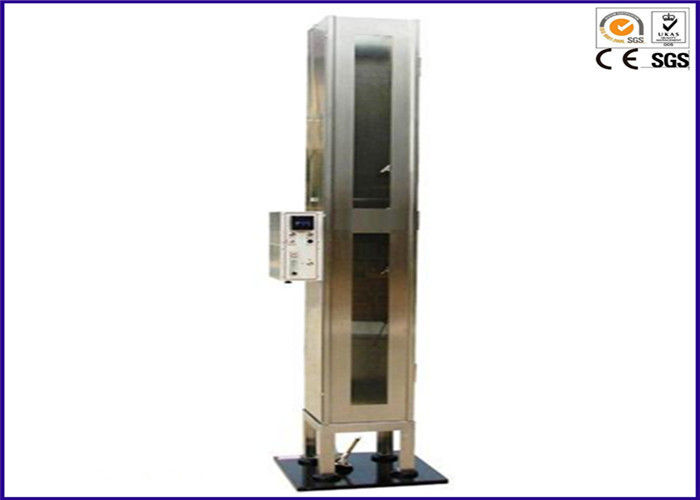

豫阳YY132烟雾可燃性测试设备,烟膜

1, Dimensions: length 500 X width 500 X height 2420mm ;

2, Burner size: diameter 9.5 mm ± 1.5 mm, length 100 ± 10 mm ;

3, Weight: 110kg

4, Flow meter range: 0 ~ 66cc/min

5, Stainless steel cabinet structure

6, With stainless steel wire

7, Imported Bunsen burner conforms to ASTM D 5025 standard

8, Imported Bunsen burner flame was 25 degree angle

9, You can set the test time

10, Automatic ignition and extinguished mode

11, Needle valve control the flame height

12, Timer range: 0-99s

13, Operating pressure of the burner: 17.5 kPa ± 2.0 kPa

14, Operating gas flow rate: 113 L/hr ± 3 L/hr

15, Flame height: 280 ± 12 mm.

16, Open box structure

17, Calcium silicate board cabinet, stainless steel exterior package

18, Merkel Burner: Burner for heat 10,500 Btu/Hour

19, Gas release and burning time is set automatically 20 seconds

20, Automatic-ignition

21, Timer accuracy of 0.1 seconds

22, Standard sample clip

23, Power: 220V, 50Hz, 110W
