消防员消防装备于阳YY133

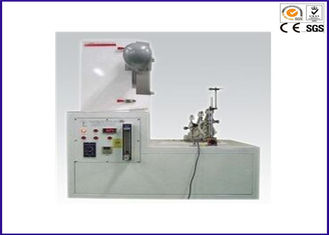

Burning test private metal mould

1, Six imported burner nozzle, you can control propane and air flow rate,

2, Burner nozzle height can be adjusted up and down; 250mm from the outer surface of the specimen,

3, Pressure gauge and regulator valve regulates the burner gas pressure in the range of 0 ~ 10kPa,

4, Gas automatic blocking device, which blocked gas supplies when the test is 5seconds,

6, Automatic ignition, switches off automatically after 5s ignition;

Back with strap test section:

1, Stainless steel baffle plate, appearance and corrosion;

2, Imported Bunsen burner, gas and air flow rate can be adjusted;

3, Torch lifting device; stainless steel sample holder;

4, Automatic timing;

5, Flame height is 40mm; the temperature at 20mm is 800 ± 50 ºC;

6, Automatic ignition, turns off automatically after 20s ignition;

Specification:

Size: 1,400 (W) x 650 (D) x 1,300 (H) mm

Power: AC 220V, 50 / 60Hz, 15A;

Weight: 80 kg
