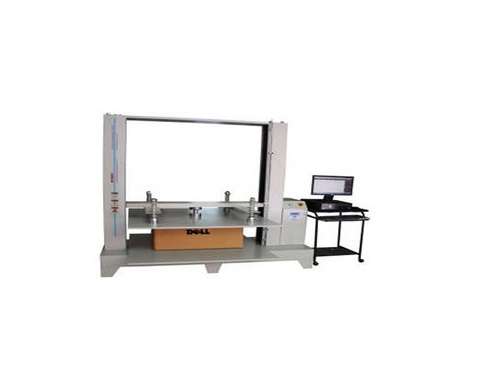

YuYang YY1415 纸箱压缩包装测试设备

Capacity: 500kg, 1000kg, 2000kg, 5000kg or customize

Resolution: 1/100,000

Correctness of force: Better than ±1%

Correctness of distortion reading: Better than ±1%

Effectual range of testing force: 1~100%F.S

Unit: kgf,gf ,N,kN,lbf

Test space: 1000×1000mm (can customize)

Space between platen: 1000mm (can customize)

Drive System: servo system,precision ball screw, DC variable speed drive system

Test speed: 0.01~500mm/min, keyboard inputing

Return speed: 500mm/min

Power: 1φ,220V±10% 50Hz

Stop mode: Set limits of security, urgent stop key, programable force and elongation setting, specimen damage sensing
