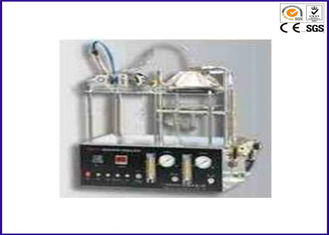

豫阳YY418建材防火测试设备

1. Test power: 220V ± 10% / 50HZ;

2. The device consists of radiation cone, pyrotechnic device, nozzle, pressure plate and support frame, temperature recorder, gas system, timer, oven;

3. Support frame is made by the bottom frame, shield and pillar composition

4. Platen body by the pressure plate, guide rod, adjusting rod and balance rods and other components.

5. Radiant cone heating power 3kw, radiation intensity: 1 ~ 5W / CM2

6. Fire institutions: by the pilot arm, secondary ignition source and cam components.

7. Gas source: propane or butane gas for industrial use; (customer supplied)

Water: for cooling the Flux Meter

8. Rotor flow meter can adjust the combustion gas flow;

9. High-precision pressure regulating valve, regulating the required gas pressure;

10. High-voltage electronic ignition system;

11. The number of temperature control table, K-type hot phone even;

12. The radiation cone is made of SUS316 stainless steel tube with power of 3KW.

13. The use of modern electronic automation design, the use of SCR technology, through the power to adjust the furnace temperature;
