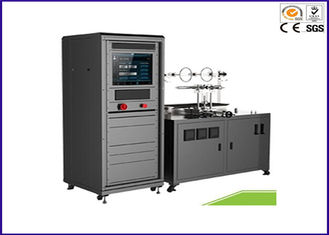

豫阳YY429电缆耐火测试设备

1. Test Chamber Size : (W) 1,600 * (D) 500 * (H) 500

2. Heat Source : Ribbon type Propane Gas Burner

3. Burner Dimension : (L) 500 x (W) 10 mm / Space of hole : 3.2mm

4. Flame Failure device, Control thermocouples

5. Pilot feed, Gas flow, Rotameter-type flowmeters

6. Auto Ignition system

7. Mass Flow Controller

8. Gas : 15 SLPM / Signal Output : 0 ~ 5V / Accuracy : ±1 % fo F.S

9. Air : 180 SLPM / Signal Output : 0 ~ 5V / Accuracy : ±1 % fo F.S

10. Electric Control : Transformer & Slidacs : 3 Phase 3 wire, 100~1,000V

11. DAQ System

12. 16 channel Analog Input / Output, 200ks/s

13. 16 channel Digital Input / Output

14. Control Rack : (W) 730 x (D) 650 x (H) 1,400 / 19" Rack / Each Assembly Connector
