豫阳YY431成套传热测试设备

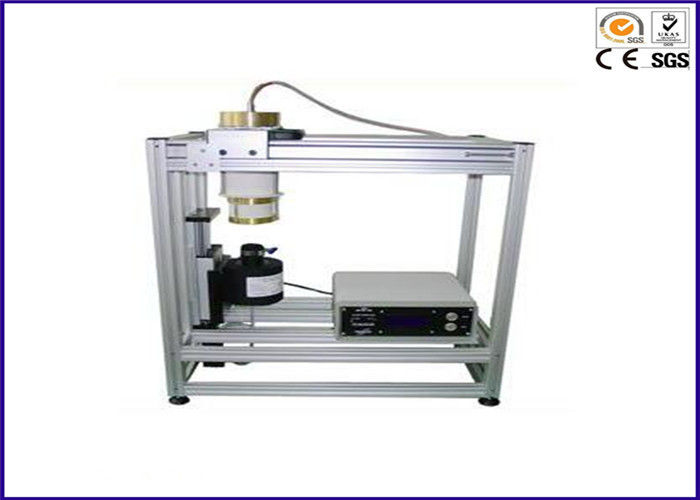

1. The device is consists of a control box and stainless steel test gantry;

2. The sample holder is automatic lifting, the lifting speed is 5mm ± 0.2mm / s

3.The K type sheathed thermocouples, diameter 2mm, temperature measurement accuracy of 0.1 ºC;

4. The heating barrel temperature is greater than 500 ºC; the contact surface of the sample diameter 25.2 ± 0.05mm

5. The barrel heating load weight 49N, can be adjusted;

6. Timer scope 99999s; timing accuracy 0.1s;

7. Calorimeter fixed disk diameter 25mm, thickness 5mm; and assembly platinum resistance temperature sensor;

8. Support frame material is nylon 66; diameter 40mm height 50mm;

9. Specimen diameter 80mm;

10. PLC and touch screen for intelligent control system;

11. PID intelligent temperature control, the system automatically collect temperature data;

12. The system automatically calculates test data, automatic storage; can print freely;

13. The test table size: 650mm x 350 mm x 650mm;

14. Power supply 220V 50 / 60Hz, power 800w.
