豫阳YY510单火源可燃性测试可燃性测试仪

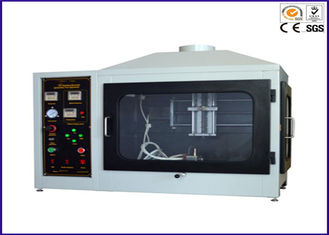

This apparatus made up of two parts: burning chamber and control device.

Power supply: AC220V±10%,50Hz；

Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet;

Gas source:>95% propane gas;(user should provide for themselves)

Gas pressure:10kpa~50kpa

Flue air velocity:0.7m/s only on condition of burner burning and draught hood open,

Time adjustment of continuous flame: 0 ~ 99minutes99seconds

Time adjustment of afterflame: 0 ~ 99minutes99seconds

Timer accuracy:≤1s/h

Anemometer accuracy:±0.1m/s.

Burner angle: 45°

Material: stainless steel

Observing window: two big viewing windows on the front and right side

Whole set: control device, burning chamber,burner,magnetic valve,flame lighter, signal control line and specimen holder.

Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time.
