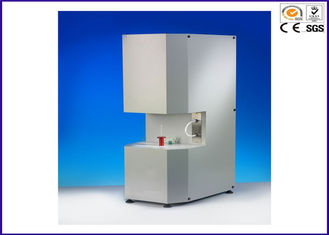

裕阳YY512建材烟密度检测设备

  • 制造商: YuYang
    Model: YY512
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

1. User- friendly, environment-friendly, patented design;

2. All steel structure, heavy duty, there is a 25x230mm ventilation opening at the bottom , and with a 1700L/min ventilation system;

3. With a toughened glass viewing window which is convenient for viewing;

4. Equipped with main and auxiliary burner enable enough smoke after fully burning;

5. High voltage pulse automatic ignition device;

6. Precise pressure adjustment valve for gas control;

7. 64*64mm square stainless specimen support;

8. 300mm optical path;

9. With adjustable light source system, and light receiving system with imported silicon optical amplifier, which make the result stable and accurate;

10. 19 inch standard control cabinet;

11. controlled by PC+Labview software;

12. Can input the flame appearing time, extinguished time, specimen burning end time, etc. after testing. Accuracy +/- 0.1s;

13. Can output test result file automatically;

14. Can automatically acquire, calculate, save and output test data;

15. Real-time display the data as well as smoke density curve;
